3 advantages of Clean Press for optimal laminate cell processing
Precision processing without burrs and crushing
Leveraging world-class grinding and precision assembly technologies, combined with over 20 years of experience supporting and solving challenges in battery development and research, we deliver precision processing optimized for battery materials by minimizing burrs, deformation, and active material disintegration.

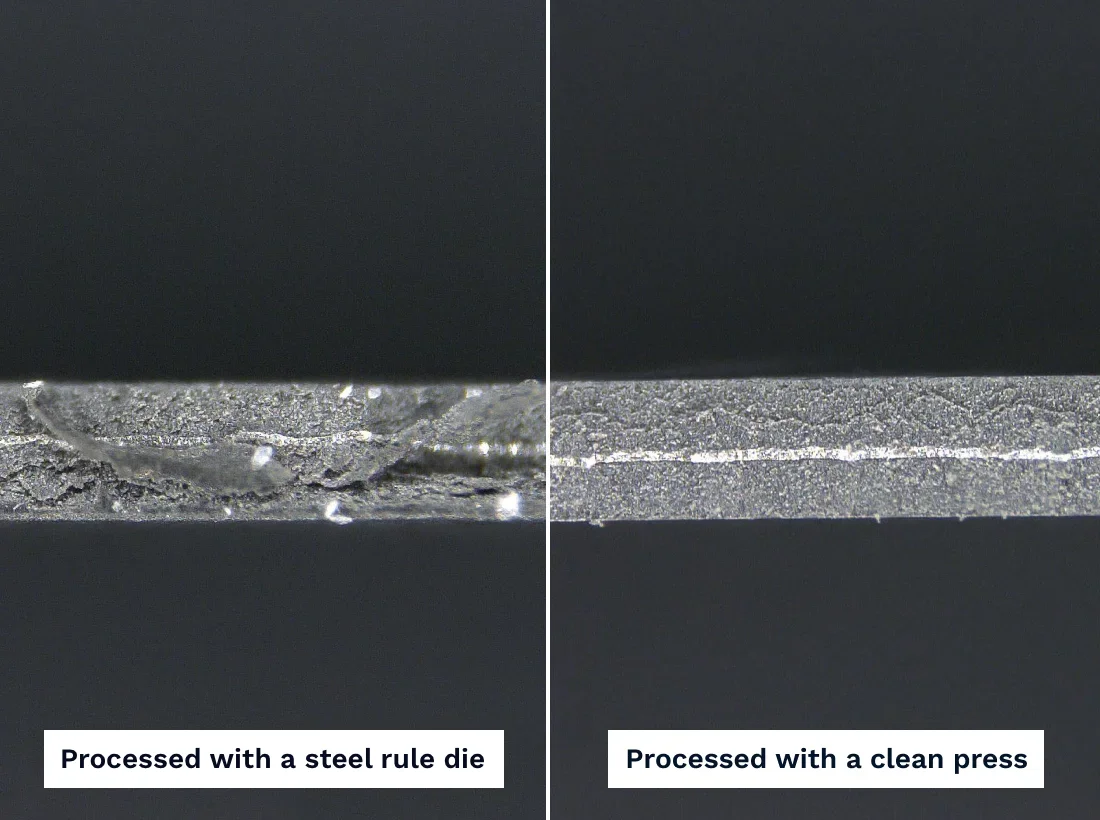

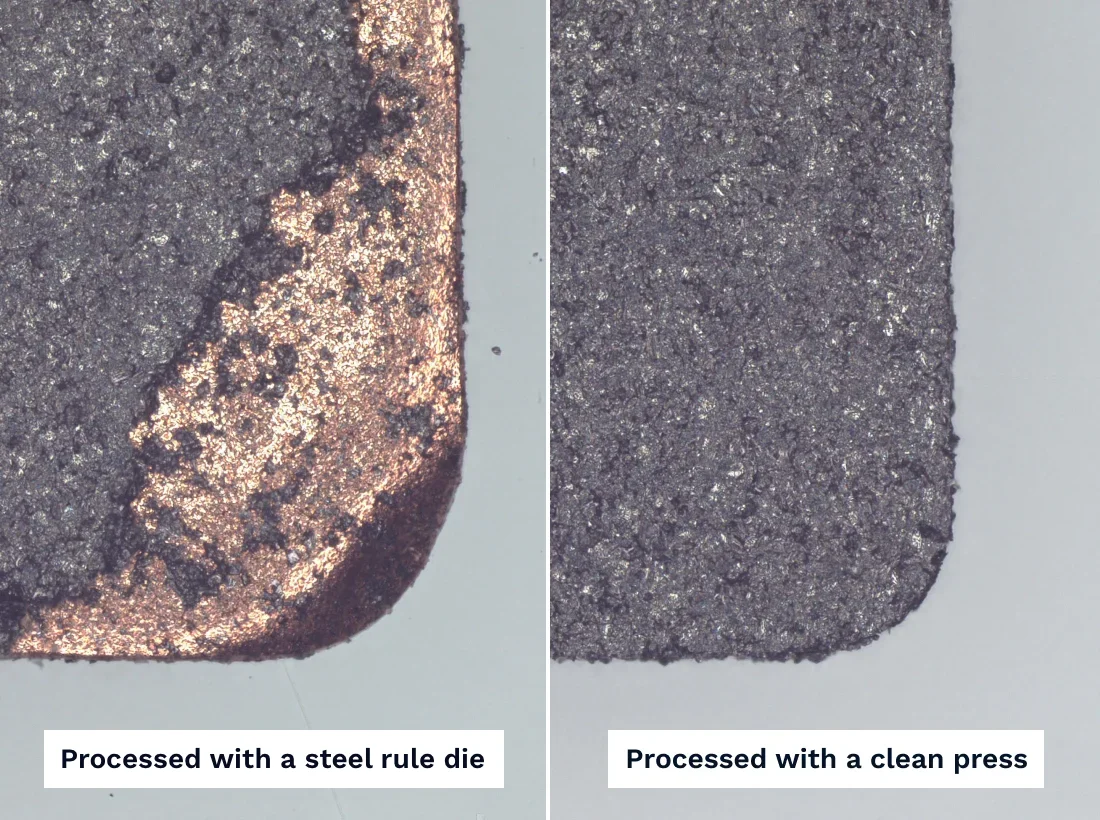

Comparison of processing results using two types of punching jigs (Anode)
-
Would you like to collect information first?
Request our free catalog. -
Would you like to make an inquiry first?
Contact us for free consultation.
Compact and easy to use
The front-opening design allows the loading of materials from the front, facilitating smooth processing even in a limited space, such as inside a glove box. Adding a set of optional tables enables continuous processing from a roll material.
-

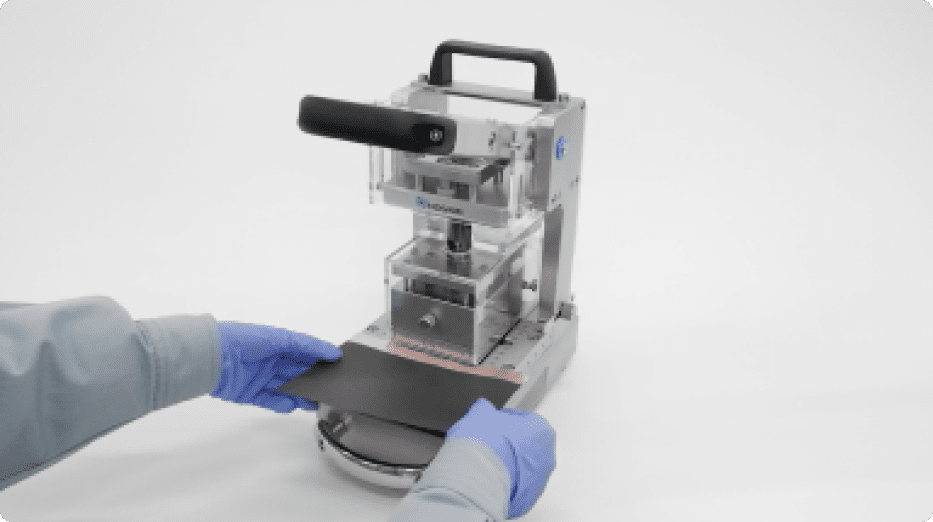

Material can be inserted from the front.
-

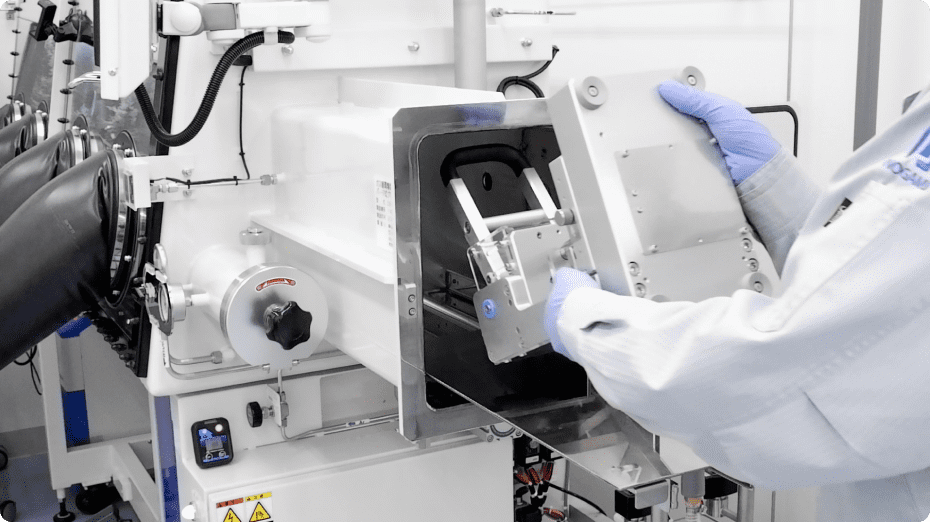

Its compact body allows easy installation and removal through the antechamber of a glove box.
-

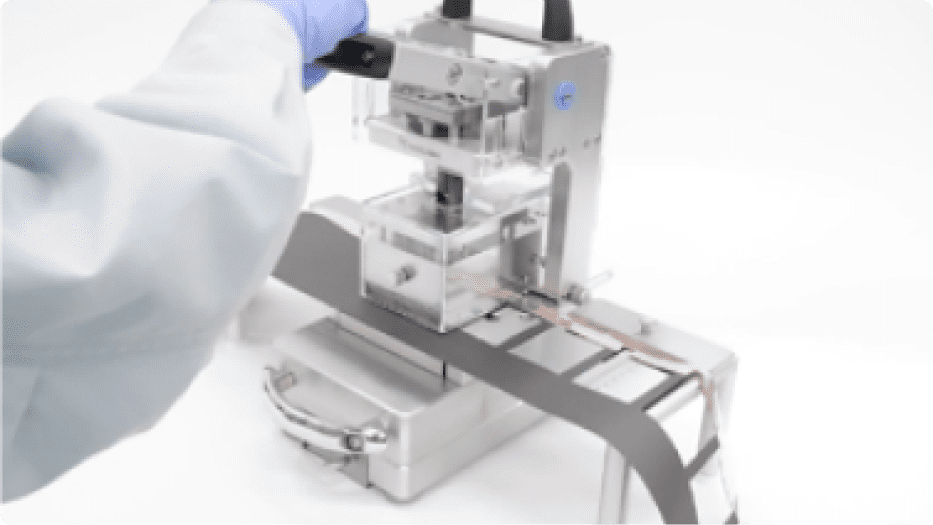

Continuous processing (using the optional tables)

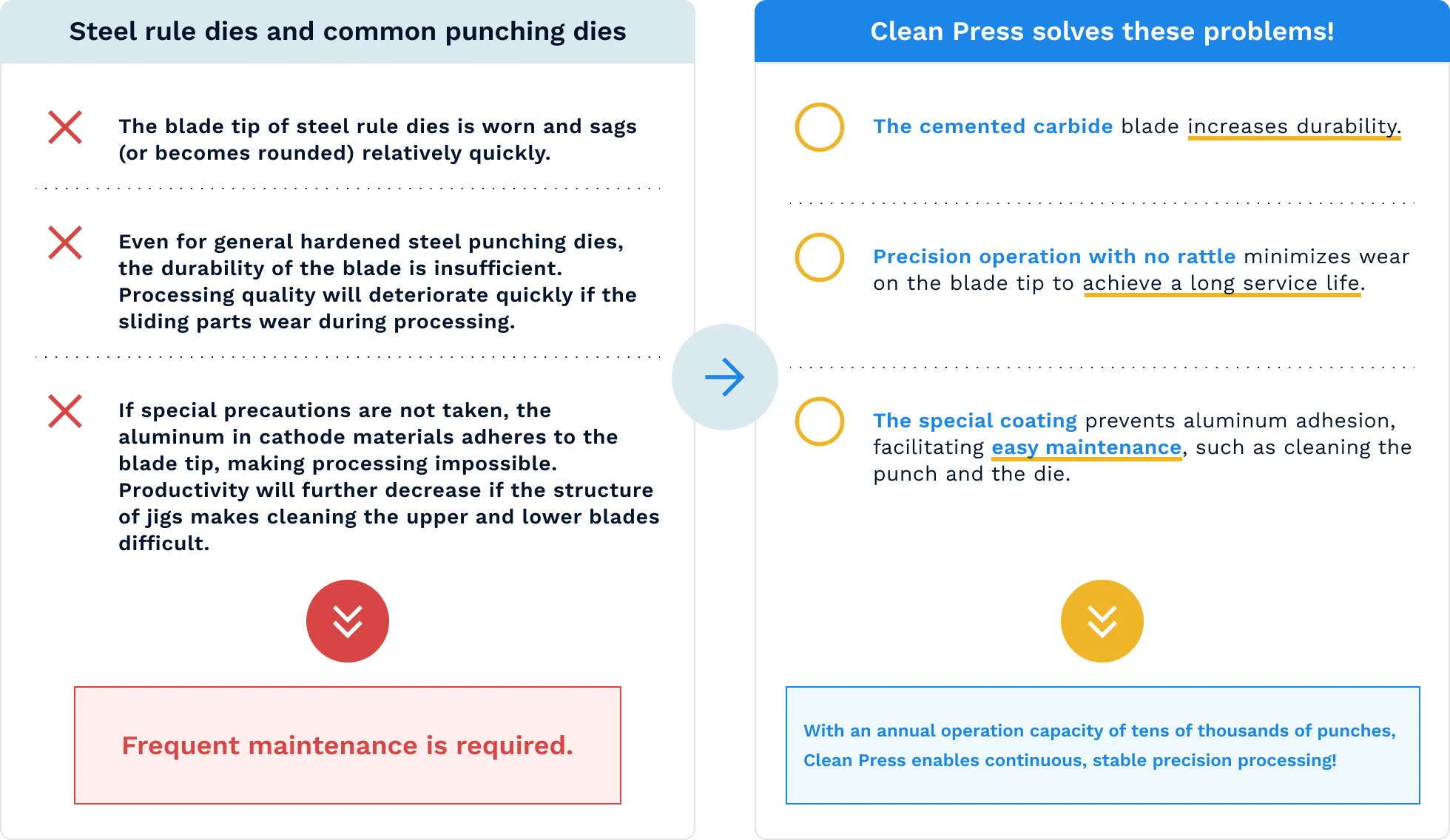

Long life and high maintainability
Clean Press delivers stable precision processing even at the operating frequencies of tens of thousands of punches per year. It has been trusted and continuously used for many years by Japanese and foreign battery, automotive, and materials manufacturers, as well as research institutions.
-
Would you like to collect information first?
Request our free catalog. -
Would you like to make an inquiry first?
Contact us for free consultation.
Comparison of processing results using two types of punching jigs
Anode electrode
-
Top view of the corner radius
-
Cross section of the corner radius
Cathode electrode
-
Cross section of the material
-

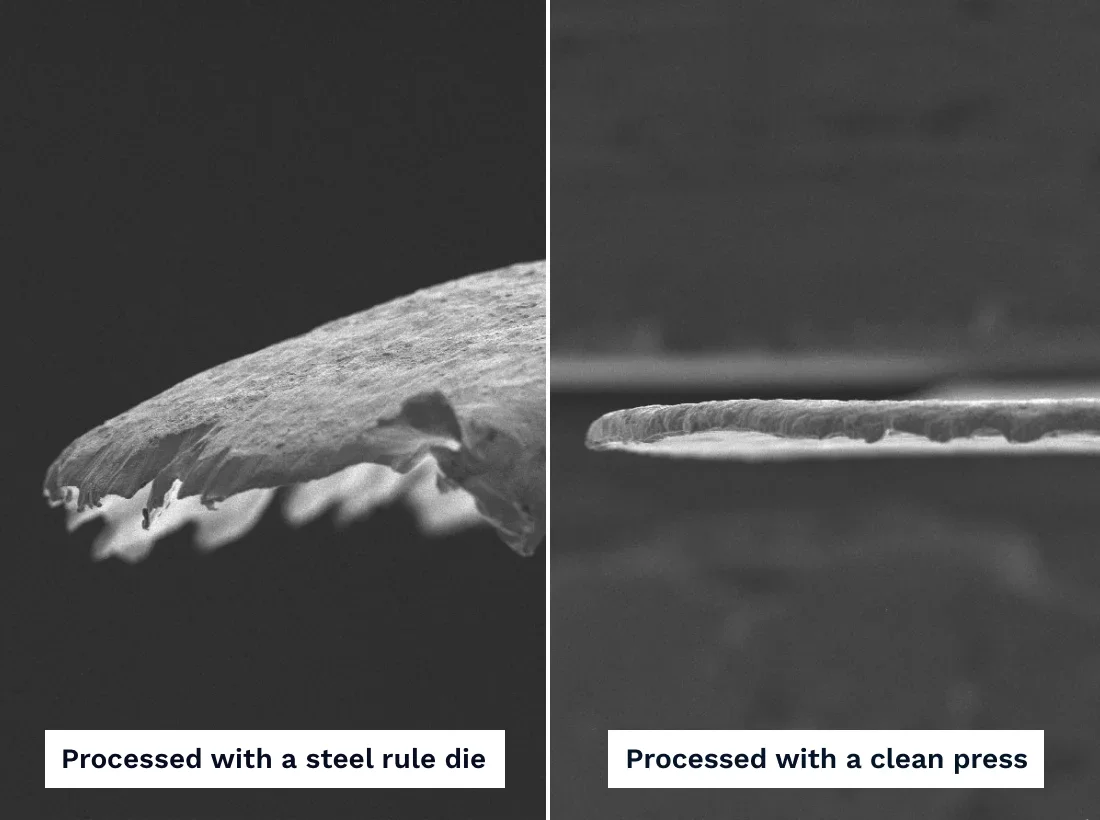

Cross section of the current collector foil
Basic specifications
Product specifications

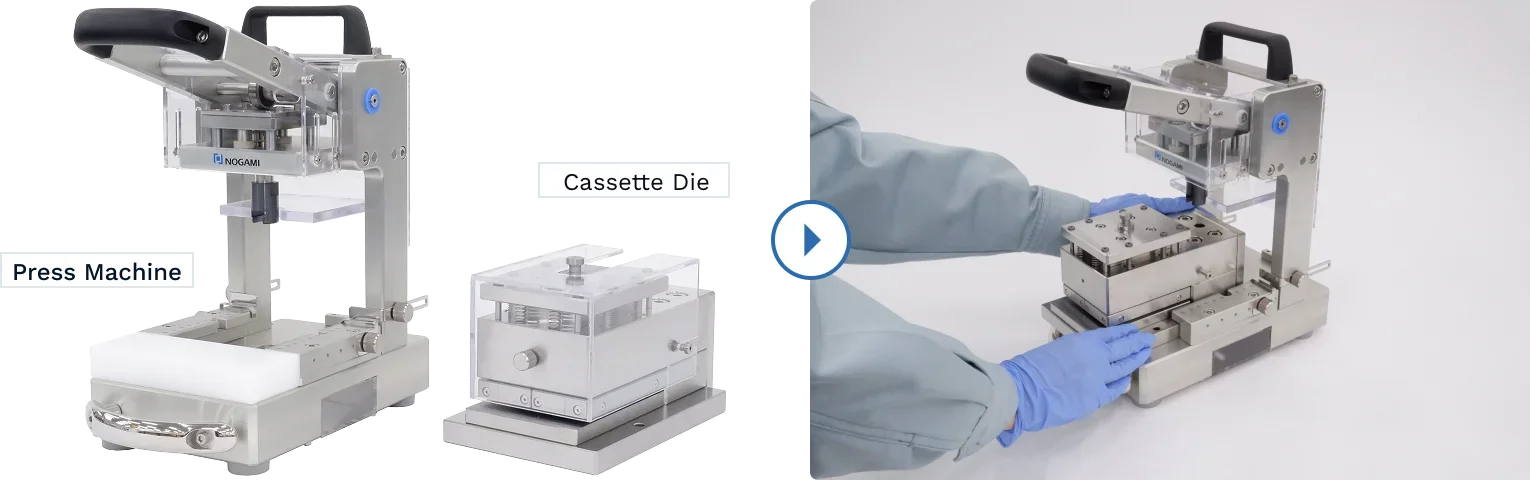

Set the cassette die in the press machine for use.
Easy die installation allows for quick replacement with cassette dies of different shapes and sizes.

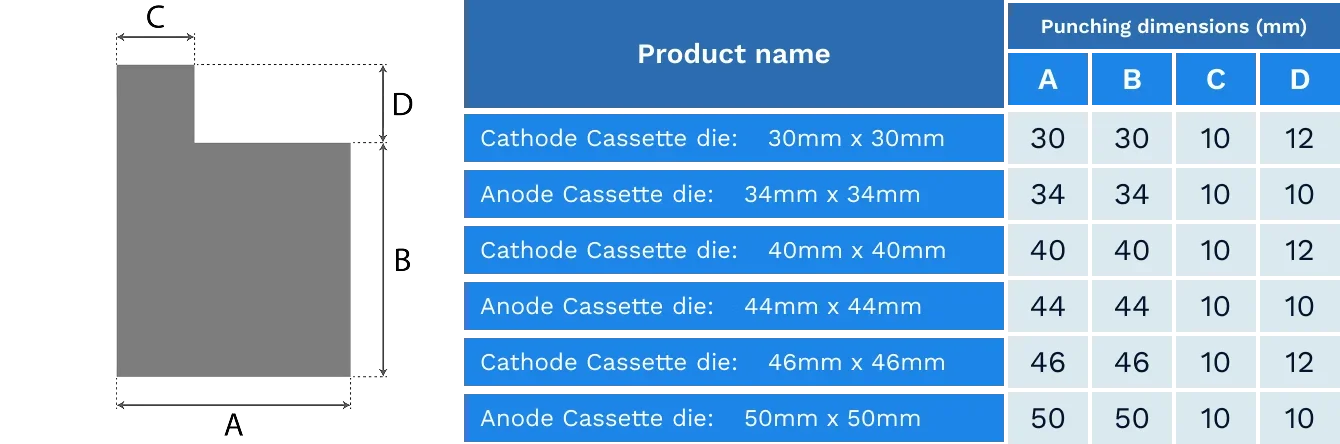

Available punching shapes and dimensions
Custom-made products
You can order punching dimensions in increments of 0.01 mm. In addition to simple round and square shapes, tab-attached shapes are also available.
- Round: Up to 50.00 mm diameter
- Square and rectangular: Up to 50.00 x 70.00 mm
- Tab-attached shape: Up to 50.00 × 70.00 mm (in total including tab part)
Ready-made standard products
We provide general laminated cell shapes in standard sizes for immediate delivery. The lineup of cathode and anode cassette dies allows battery prototyping to start right away.
Optional tables

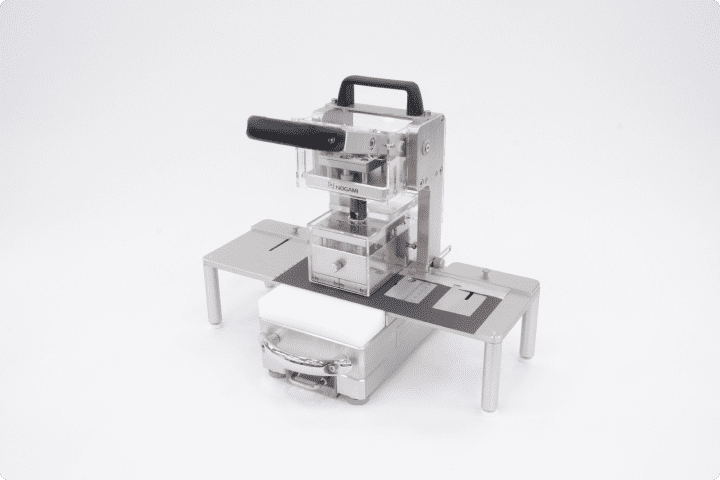

Adding the optional tables and the press base raise mount (sold separately) enables smooth continuous processing.
*This is recommended for processing roll materials or small-volume production.
-

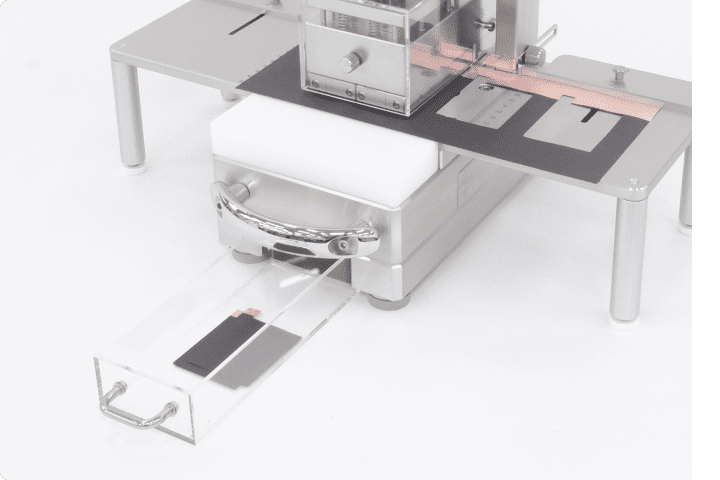

Continuous processing
-
Stock capacity of up to 100 sheets of the punched material with a thickness of approximately 20 μm
Free
A PDF catalog is available for those who need more details or are considering the product.
Free material processing test
You can check the processing quality before purchasing the product using the actual material you want to punch.
Option 1 Sending the material to Nogami laboratory
Recommended if ...
-
1
you want to have Nogami's sample processing and evaluation professionals determine the processing quality.
-
2
you need to process a material prone to burrs, sagging, or delamination when punched with currently available processing techniques.
Send the material to Nogami laboratory for a processing test.
Send material for processing test (for free)Option 2 Borrowing a demonstration machine
Recommended if ...
-
1
You want to check the processing quality and operability using an actual machine.
-
2
You cannot send the material out (even if you sign an NDA).

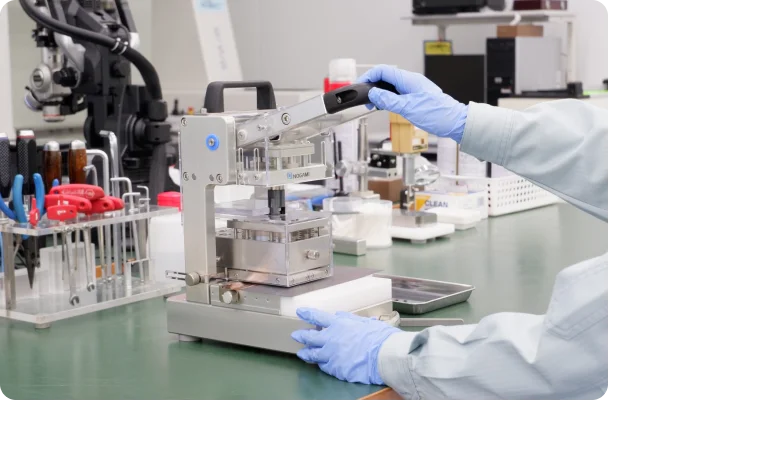

We lend a demonstration machine for free.
For those who wish to borrow a demonstration machine (for free)
About Nogamigiken
As a leading manufacturer of battery material processing tools, Nogamigiken offers products that have been continuously refined and improved to meet the needs of development and research sites.
The world's leading core technology
-
1
Grinding technology that Nogamigiken has cultivated since its founding
(Parallelism and perpendicularity: 5/10,000 mm) -
2
Ultra-precision assembly technology to suppress the cumulative error to ±2 μm or less
Over 20 years of support experience in the battery industry
-
1
Selling products that have been verified to be effective in solving typical challenges in battery development
-
2
Providing project-based support to solve new challenges that cannot be addressed by existing methods (e.g., collaborative development of new methods)
Introduction to the NOGAMI products

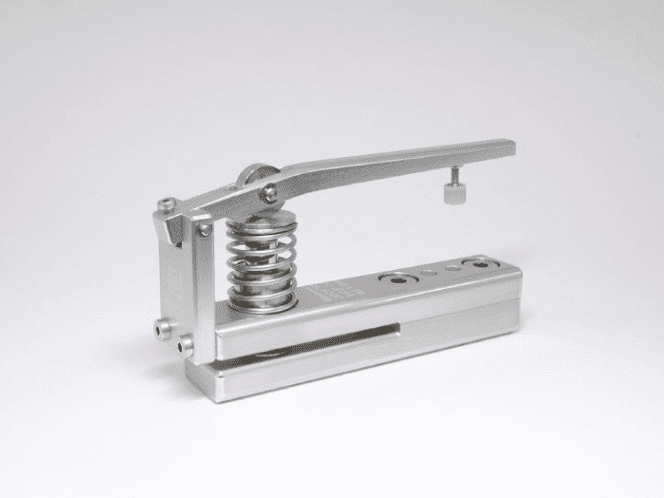

Handheld electrode punch
for coin cells

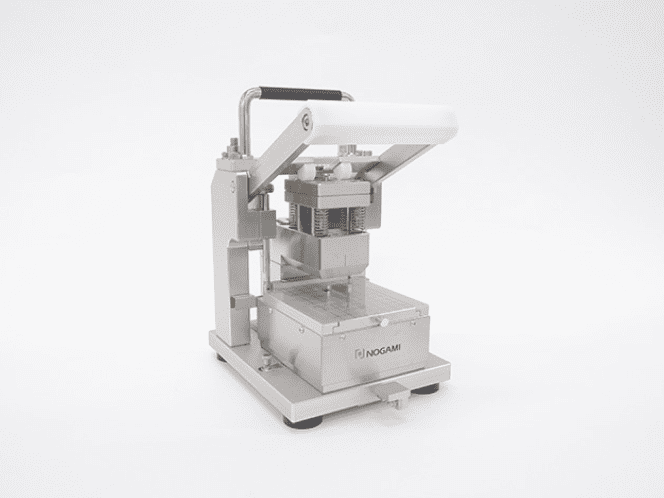

Punching jig for cross-sectional observation samples
(C technique jig)
for cross-section observation samples

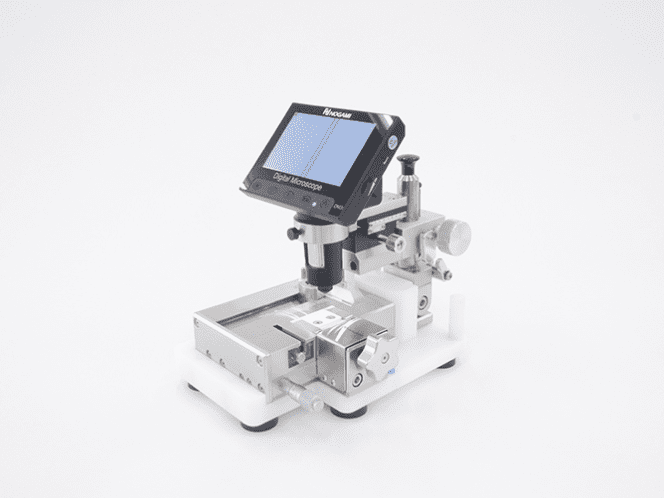

Cut surface finishing jig for cross-sectional observation samples
(S technique jig)
for cross-section observation samples
Simple cantilever-type cutting machine and Precision gate-type cutting machine
for battery prototyping

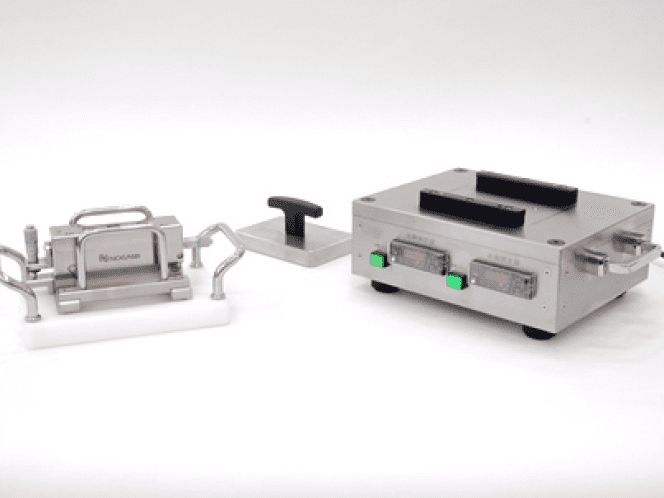

Variable precision coating applicator
