CASE

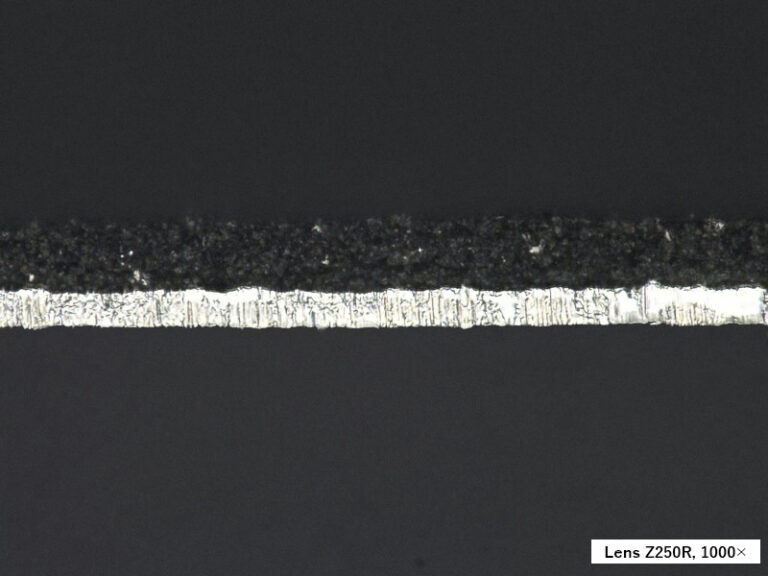

  • Cross section of the Punched Cathode(magnified 1,000×)
    Report on Processing Quality of Battery Materials
    Results of a punching processability test of a lithium-ion battery electrode (Cathode, 100 μm, single-side coated)

    Read More Results of a punching processability test of a lithium-ion battery electrode (Cathode, 100 μm, single-side coated)Continue

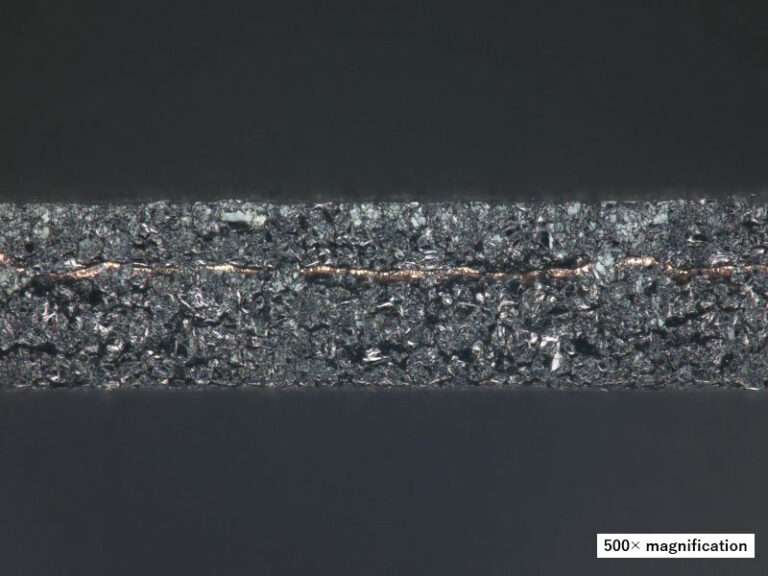

  • Cross section of the Punched Anode(magnified 500×)
    Report on Processing Quality of Battery Materials
    Results of a punching processability test of a lithium-ion battery electrode (Anode, 150 μm, double-side coated)

    Read More Results of a punching processability test of a lithium-ion battery electrode (Anode, 150 μm, double-side coated)Continue

NOGAMIGIKEN CO.,LTD

1136-3 Izumi, Hitachiomiya City, Ibaraki-Pref., JAPAN
TEL (81)-295-53-2188

About Us
Case
Handheld Electrode Punch
Contact

Copyright © 2025 NOGAMIGIKEN Co., Ltd.

精密引張試験片カット治具(短冊状/ダンベル状)

金属箔や樹脂シートなど箔材に特化した試験片加工治具です。
極少クリアランスによる打抜き工法を採用しているため、バリや潰れ、変形のない高品質で高精度な試験片加工が可能。
ばらつきがなく信頼性の高い試験結果が得られます。

【特徴】

  • 2辺同時切断加工のため、均一で安定した寸法精度を保持
  • 切断刃で押し切るトムソン型では得られない高品質な切断面と形状精度
  • 高硬度刃物の採用によりトムソン型と比べ(に対し)10倍の刃先寿命
  • 短冊・ダンベル形状のカスタムオーダーに対応
精密試験片カット治具(柵型/ダンベル型)

【仕様】

 ・刃部材質:合金工具鋼 / 超硬+特殊コーティング

【試験片引張試験結果の比較】

試験片引張試験結果の比較
